Robust solution for complex geometries and precise dimensions

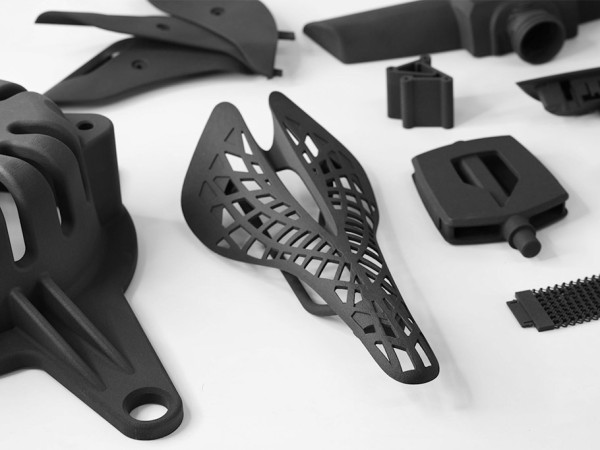

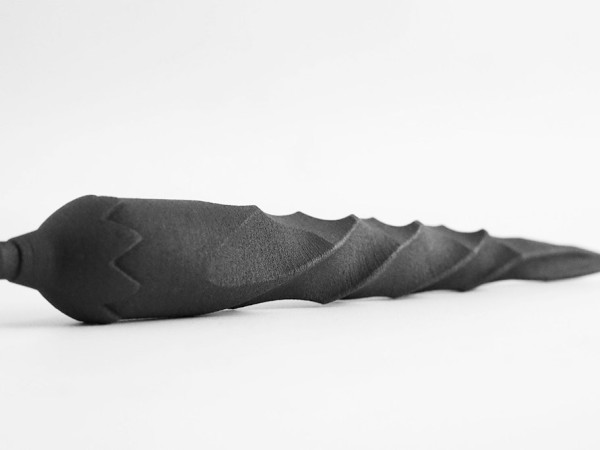

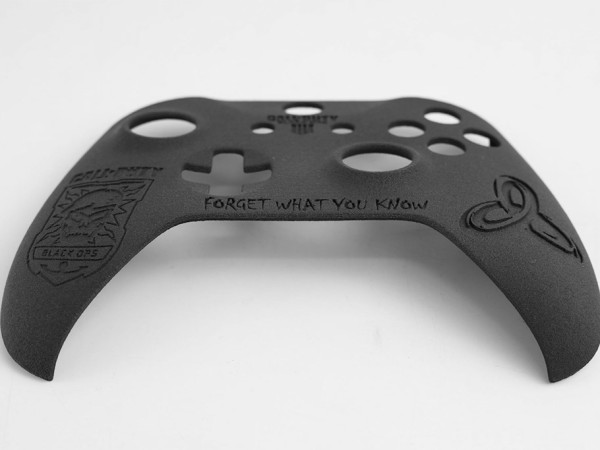

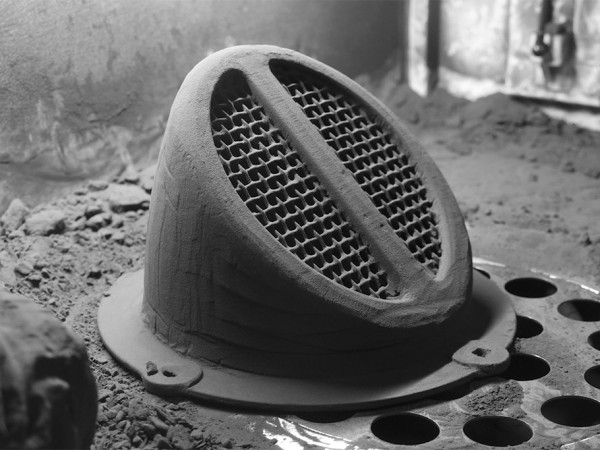

SLS is an additive manufacturing technology that produces 3D models by sintering powdered PA 12 material layer by layer with a laser.
What is SLS (Selective Laser Sintering)?
There are no support parts in SLS technology.
Powdered PA12 material is used as raw material.
Prints completed as a result of layer by layer sintering of powdered polyamide material with laser are in the quality of the final product in terms of dimensional accuracy and strength.
SLS is suitable for the surface smoothing process called chemical polishing and provides plastic injection quality parts.
Technical Specifications
- Build Volume: 400 x 400 x 540 mm
- Layer Thickness: 0.1 mm
- Color: Black and White
Advantages of SLS 3D Printing
- Unsupported Quick Print
- High Volume Mass Production

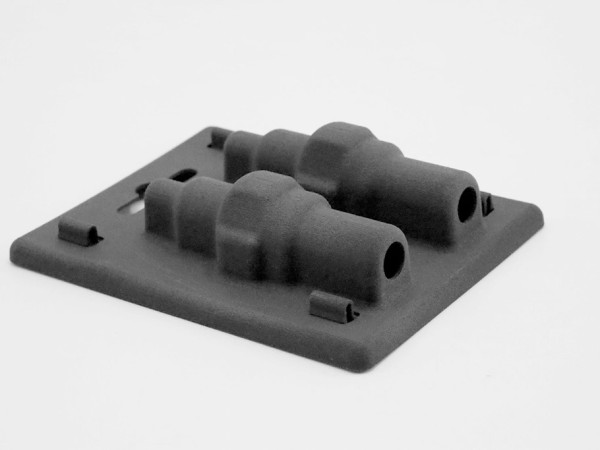

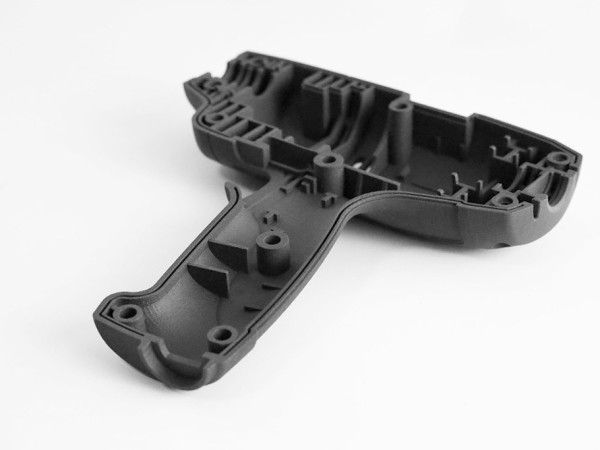

- End-Use Mechanical Parts

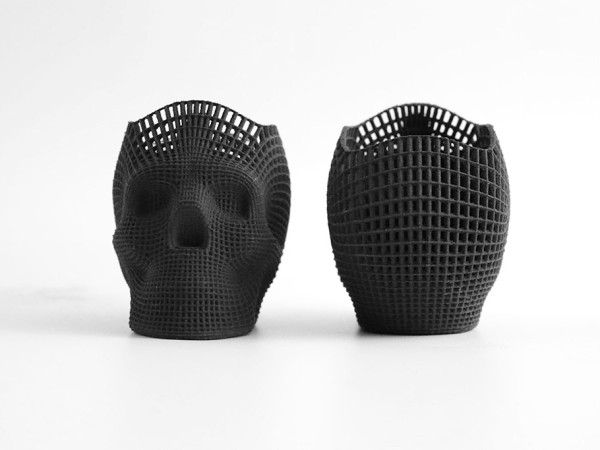

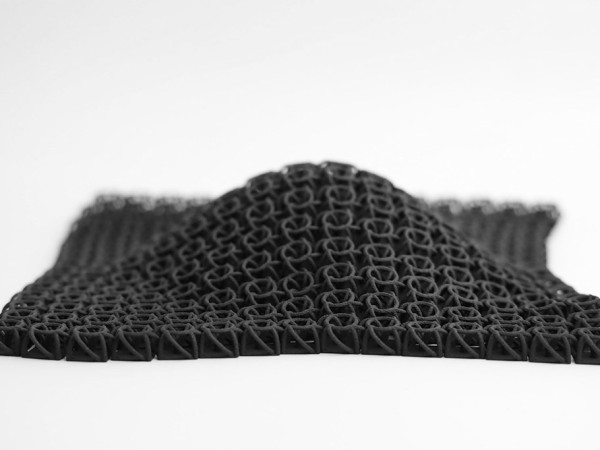

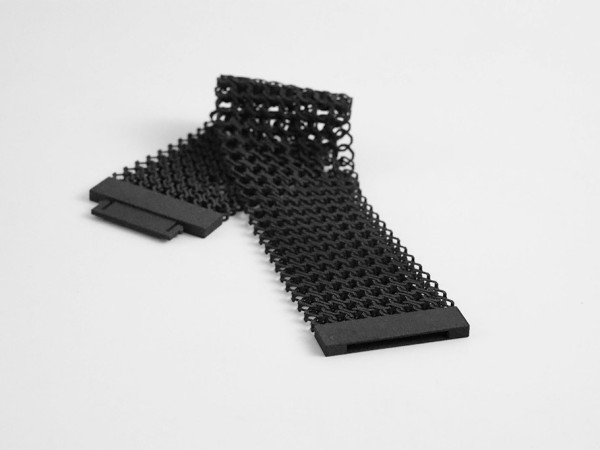

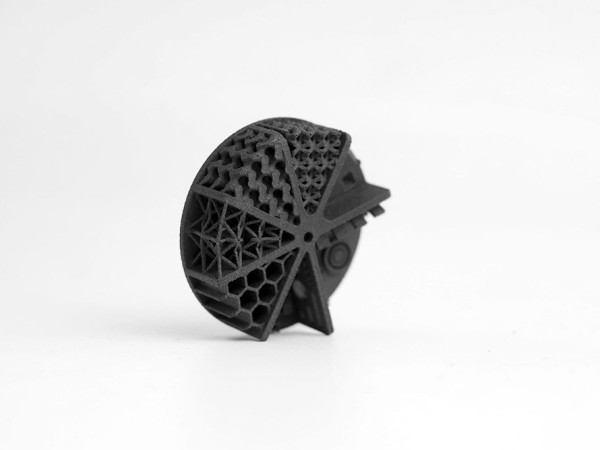

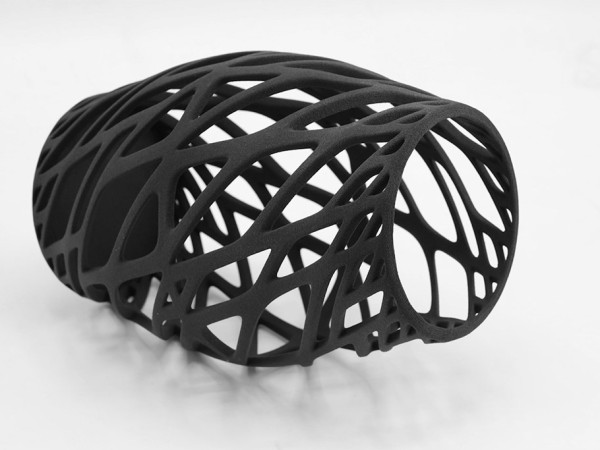

- Complex Geometries
- Dimensional Consistency
PA12
Advanced PA12-based polymer material, a wide variety of industrial suitable for applications.
Main Features:
- Balanced performance of thermal properties
- Excellent mechanical properties
- Good part surface ease of post-processing
- High oxidation resistance & low water absorption
Example applications:
- Mass production of functional parts
- Complex geometries
- High quality prototypes
- Versatile use for many industry applications
Mechanical Properties
| Property | Test Method | PA12 Black Value | PA12 White Value |
|---|---|---|---|
| Tensile Strength, Max Load - XY | ISO 527-1:2019 | 48.2 MPa | 46 MPa |
| Tensile Modulus | ISO 527-1:2019 | 1820 MPa | 1602 MPa |
| Elongation at Break (%) | ISO 527-1:2018 | 22 % | 36 % |
| Flexural Strength | ISO 178:2019 | 60.4 MPa | 46.3 MPa |
| Flexural Modulus | ISO 178:2019 | 1640 MPa | 1300 MPa |
| Izod Impact Strength (notched) | ISO 180:2019 | 8 KJ/m² | 4.9 KJ/m² |
| Izod Impact Strength (unnotched) | ISO 180:2019 | 20 KJ/m² | 13.2 KJ/m² |
Physical Properties
| Property | Test Method | PA12 Black Value | PA12 White Value |
|---|---|---|---|
| Melting Point (10°C/min) | ISO 11357-1:2020 | 184°C | 183°C |
| Heat Deflection Temperature | ISO 78 @ 1.8 MPa | 53°C | 83.5°C |
| Heat Deflection Temperature | ISO 78 @ 0.45 MPa | 147°C | 146.2°C |
| Bulk Density | - | 0.52 g/cm³ | 0.48 g/cm³ |
| Part Density | - | 1.02 g/cm³ | 0.95 g/cm³ |
Surface Treatment - Vapor Smoothing
The process is not limited to the visible surface only it also polishes the complex interior spaces of polymer parts.
- Advanced Mechanical Properties
- Dimensional Accuracy
- Color Enhancement
- Sealing Against Liquid & Gas
- Injection Molding Level Surface Quality
- Reduction in Bacteria Formation
Applications
- Defence,
- Health,
- Automotive,
- Education,
- Energy,
- Mold & Prototype,
- Construction & Architecture,
- Space & Aerospace
