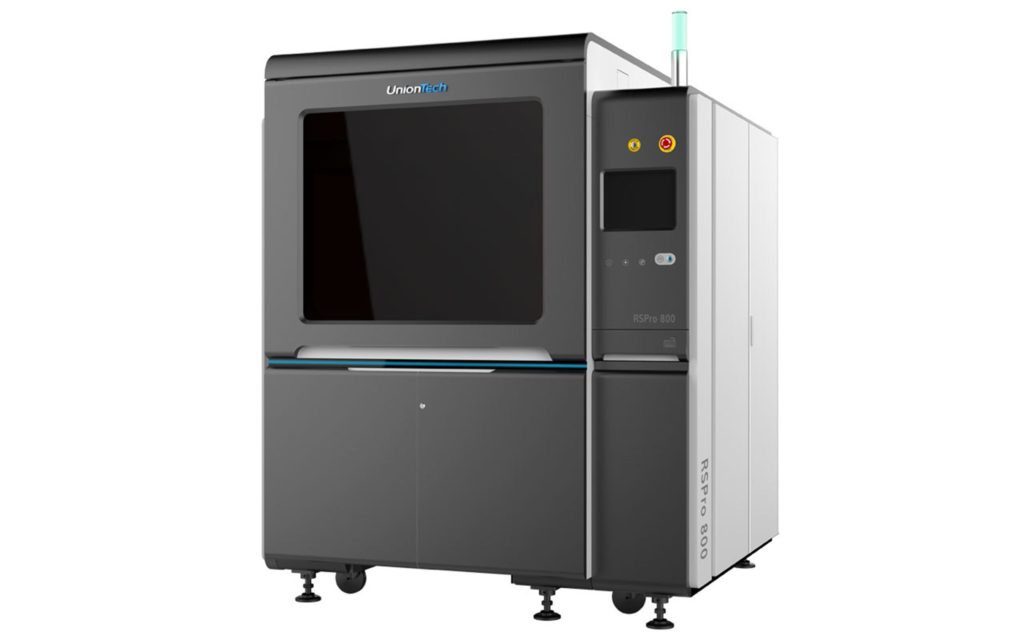

RSPro800 2.0 is an industrial-grade larger format SLA 3D printer, compatible with a variety of 3D printing materials for large-batch printing. High efficiency, high precision, high stability. Using variable spot and split design to provide a one-stop solution for large-format integral printing, small-format for large-batch printing.
One Printer, Multiple Industries
- Precision Manufacturing Part
- Cutural and Creative Prototype
- Industrial Part
- Automative Part
- Transparent Deer Model
UnionTech RSPro800 Technical Specifications
| Build Volume | 800 × 800 × 550 mm 31.5 × 31.5 × 21.7 in |
| Accuracy | Dimension<100 mm: ±0.15 mm Dimension ≥100 mm: ±0.15% x Dimension |
| Layer Thickness | 0.07-0.25 mm |
| Laser | 355 nm, solid-state frequency tripled Nd: YVO₄ |
| Beam Focus | Dynamic & Variable |
| Beam Size | 0.12-0.85 mm |
| Scanning Speed | 6-12 m/s |
| Control Software | UnionTech™ RSCON |
| Data Interface | .stl |
| Network |
Ethernet, IEEE802.3, TCP/IP |
| Rated Power | 3.0 kVA |
| Systems Control | Closed-loop |
| Temperature Range | 22–26 °C (72–79 °F) |
| Relative Humidity | < 40% |
| Resin Vat | Replaceable |
| Machine Dimensions | 1750 × 1600 × 2110 mm 68.90 x 62.99 x 83.07 in |
| Machine Weight | 1440 kg |
