RSPro600 2.0 is an industrial-grade large-format Stereolithography SLA 3D printer, compatible with a variety of 3D printing materials for small-batch printing. Provide a one-stop solution for small-batch printing with high efficiency, accuracy and stability.
Industrial SLA 3D Printer
- Industrial SLA 3D printing technology
- Practical build capacity of 450 × 450 × 400 mm
- Industry-leading print quality, speed and precision
- 3D printing software for file preparation and production
- Compatible with a variety of 3D printing materials
One Printer, Multiple Industries

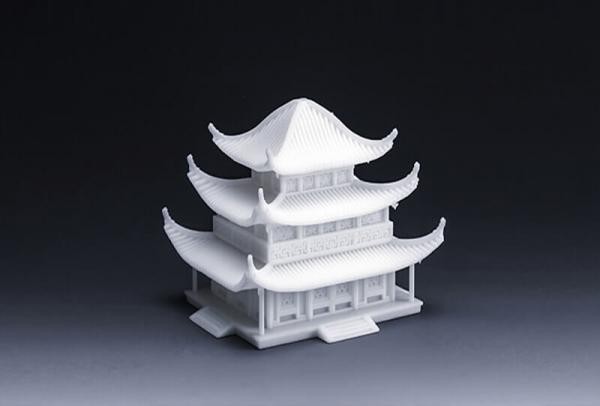

- Architectural Part

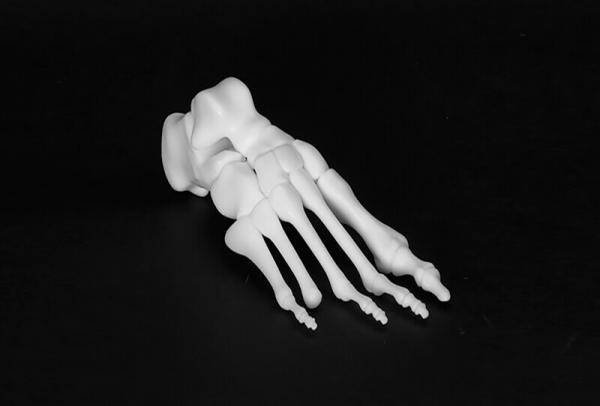

- Foot Skeleton

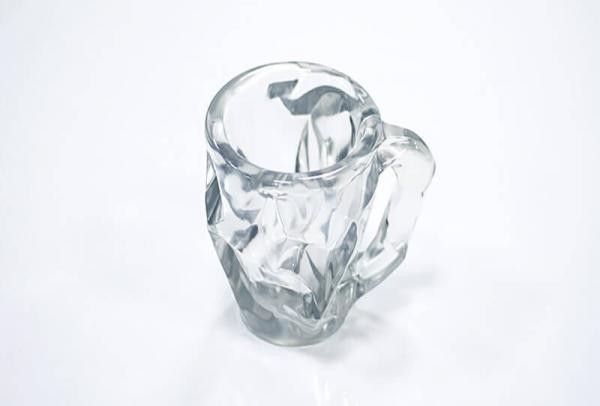

- Transparent Cup

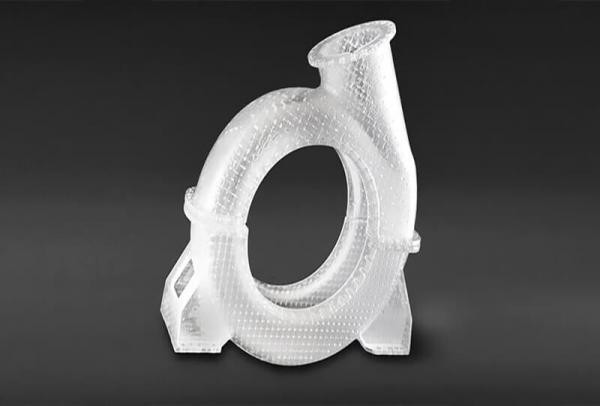

- Casting Part

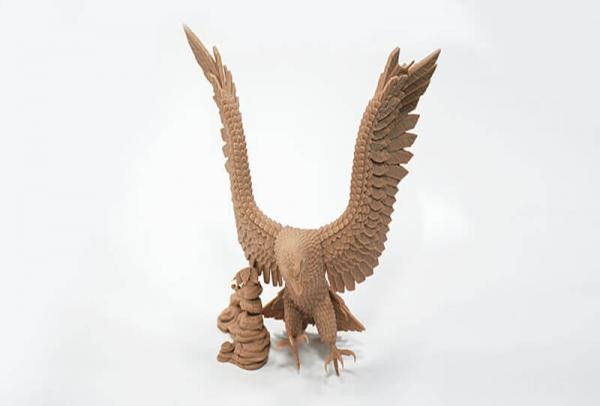

- Eagle Model
UnionTech RSPro600 Technical Specifications
| Build Volume | 600 × 600 × 500 mm 23.6 × 23.6 × 19.7 in |
| Accuracy | Dimension<100 mm: ±0.1 mm Dimension ≥100 mm: ±0.1% x Dimension |
| Layer Thickness | 0.05-0.25 mm |
| Laser | 355 nm, solid-state frequency tripled Nd: YVO₄ |
| Beam Focus | Dynamic & Variable |
| Beam Size | 0.12-0.2 mm |
| Scanning Speed | 6-10 m/s |
| Control Software | UnionTech™ RSCON |
| Data Interface | .stl |
| Network | Ethernet, IEEE802.3, TCP/IP |
| Rated Power | 3.0 kVA |
| Systems Control | Closed-loop |
| Temperature Range | 22–26 °C (72–79 °F) |
| Relative Humidity | < 40% |
| Resin Vat | Replaceable |
| Machine Dimensions | 1550 × 1600 × 2115 mm 61.02 x 62.99 x 83.27 in |
| Machine Weight | 1490 kg |
