Large SLA 3D Printer
RSPro2100 is our largest format SLA 3D machine printer. There are three laser scanning, this innovative scanning additive manufacturing system is perfectly suited for the industrial production of large, high quality finished parts as well as mass part production. The large scale resin 3D printer offers exceptional precision, fine surface finish, and the ability to handle a wide range of resin materials with various mechanical and aesthetic properties. Whether you need to produce functional prototypes or mass-produce parts, our SLA 3D printers for sale have got you covered.
One Printer, Multiple Industries

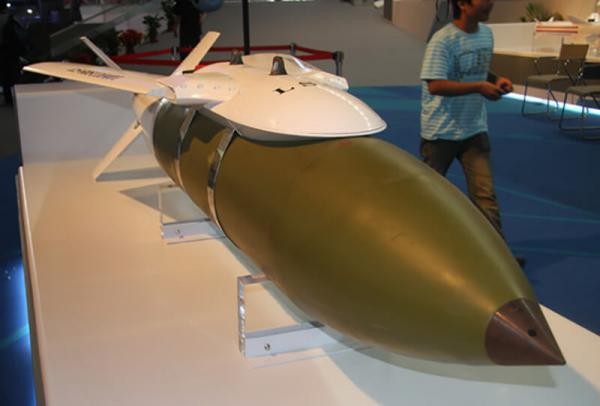

- Aeronautical Part

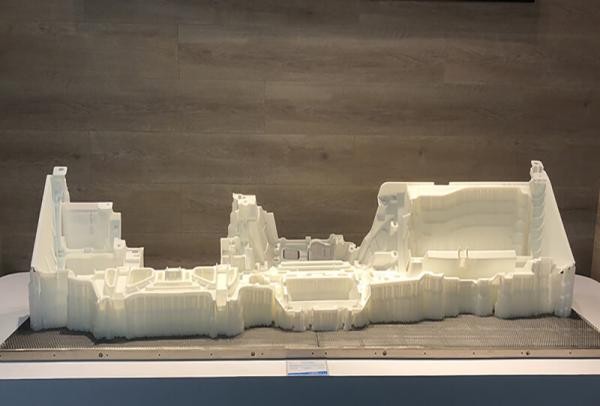

- Automotive Casting

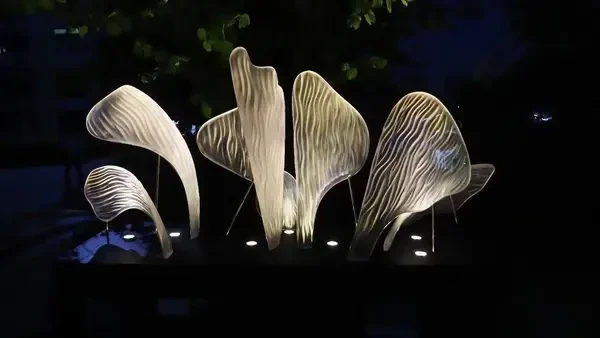

- Outdoor Display

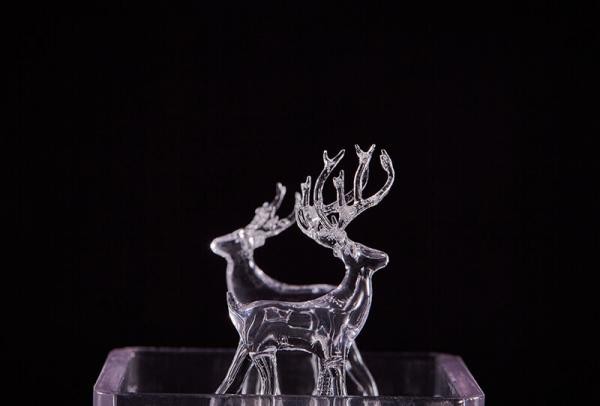

- Cutural and Creative Prototype

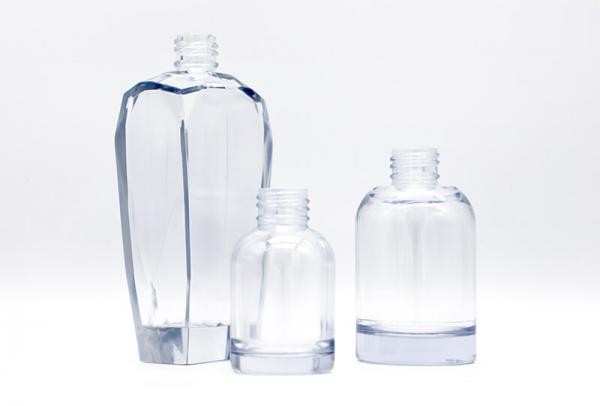

- Glass
UnionTech RSPro2100 Technical Specifications
| Build Volume | 2100 × 700 × 800 mm 82.7 × 27.6 × 31.5 in |
| Accuracy | Dimension <100 mm: ±0.2 mm Dimension ≥100 mm: ±0.2% x Dimension |
| Layer Thickness | 0.1-0.25 mm |
| Laser | 355 nm, solid-state frequency tripled Nd: YVO₄ |
| Beam Focus | Dynamic & Variable |
| Beam Size | 0.1-0.85 mm |
| Scanning Speed | 8-15 m/s |
| Control Software | UnionTech™ RSCON |
| Date Interface | .stl |
| Network | Ethernet, IEEE802.3, TCP/IP |
| Rated Power | 5.4 kVA |
| Systems Control | Closed-loop |
| Temperature Range | 22–26 °C (72–79 °F) |
| Relative Humidity | < 40% |
| Resin Vat | Fixed |
| Machine Dimensions | 2630 × 1945 × 2765 mm 103.54 x 76.58 x 108.86 in |
| Machine Weight | 2520 kg |
