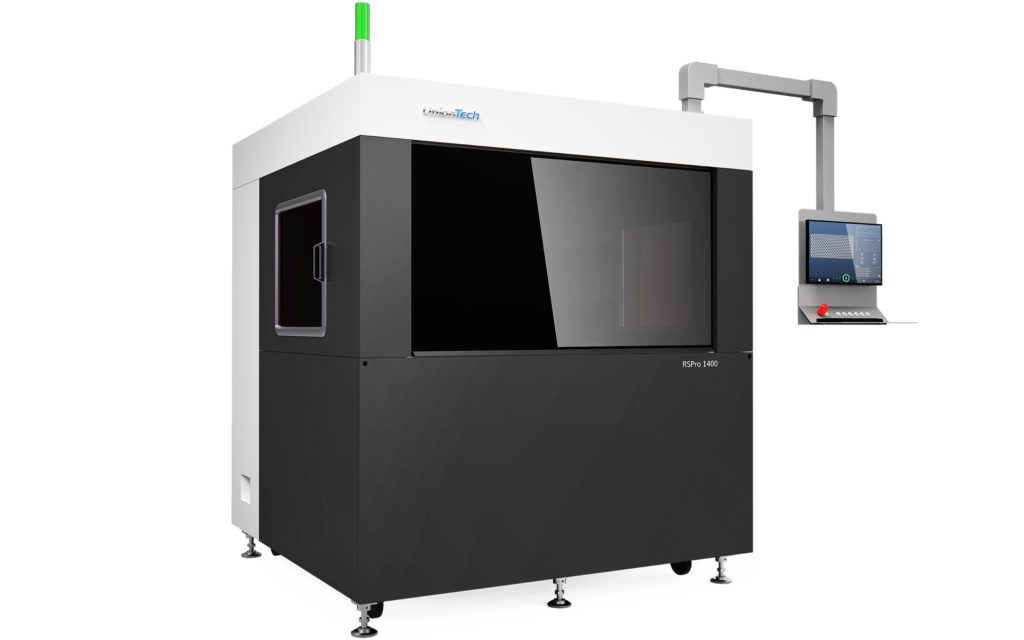

Large-format SLA 3D Printer
The RSPro1400 innovative dual laser-dual scanning system is perfectly suited for the industrial production of large, high quality finished parts as well as mass part production.
One Printer, Multiple Industries
- Air Conditioner Part
- Washing Machine Panel Part
- Industrial Part
- Washbasin Prototyping
- Electrionic Iron Part
UnionTech RSPro1400 Technical Specifications
| Build Volume | 1400 × 700 × 500 mm 55.1 × 27.6 × 19.7 in |
| Accuracy | Dimension <100 mm: ±0.2 mm Dimension ≥100 mm: ±0.2% x Dimension |
| Layer Thickness | 0.1-0.25 mm |
| Laser | 355 nm, solid-state frequency tripled Nd: YVO₄ |
|
Beam Focus |
Dynamic & Variable |
| Beam Size | 0.12-0.85 mm |
| Scanning Speed | 6-10 m/s |
| Control Software | UnionTech™ RSCON |
| Data Interface | .stl |
| Network |
Ethernet, IEEE802.3, TCP/IP |
| Rated Power | 3.9 kVA |
| Systems Control | Closed-loop |
| Temperature Range | 22–26 °C (72–79 °F) |
| Relative Humidity | < 40% |
| Resin Vat | Fixed |
| Machine Dimensions | 1885 × 1835 × 2100 mm 74.21 x 72.24 x 82.68 in |
| Machine Weight | 1907 kg |
