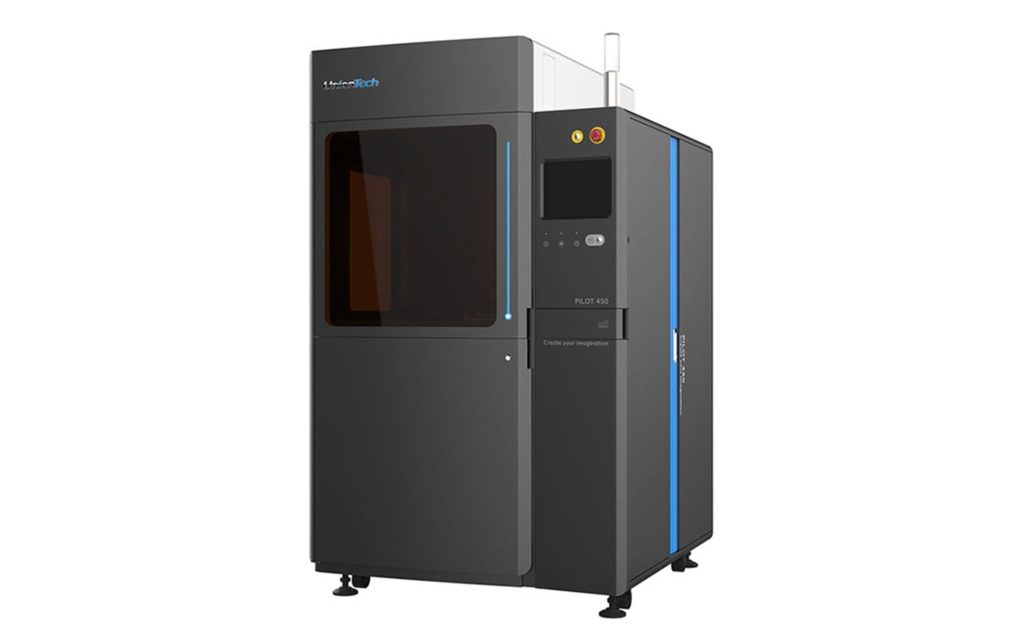

UnionTech Pilot450 SLA 3D printer is perfectly suited for medical applications, education, architecture & investment casting.
Industrial SLA 3D Printer
- Industrial SLA 3D printing technology
- Practical build capacity of 450 × 450 × 400 mm
- Industry-leading print quality, speed and precision
- 3D printing software for file preparation and production
- Compatible with a variety of 3D printing materials
One Printer, Multiple Industries
- Glass Part
- Architectural Part
- Decoration Part
- Jewelry
- Cutural and Creative Prototype
UnionTech Pilot450 Technical Specifications
| Build Volume | 450 × 450 × 400 mm 17.7 × 17.7 × 15.7 in |
| Accuracy | Dimension <100 mm: ±0.1 mm Dimension ≥100 mm: ±0.1% x Dimension |
| Layer Thickness | 0.05-0.25 mm |
| Laser | 355 nm, solid-state frequency tripled Nd: YVO₄ |
| Beam Size | 0.08-0.12 mm |
| Scanning Speed | 6-10 m/s |
| Control Software | UnionTech™ RSCON |
| Date Interface | .stl |
| Network | Ethernet, IEEE802.3, TCP/IP |
| Rated Power | 3.0 kVA |
| Systems Control | Closed-loop |
| Temperature Range | 22–26 °C (72–79 °F) |
| Relative Humidity | < 40% |
| Resin Vat | Replaceable |
| Machine Dimensions | 1310 × 1290 × 2135 mm 51.58 x 50.79 x 84.06 in |
| Machine Weight | 945 kg |
