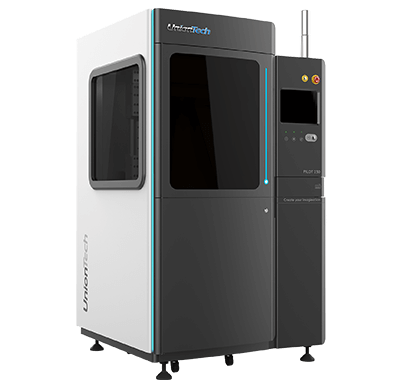

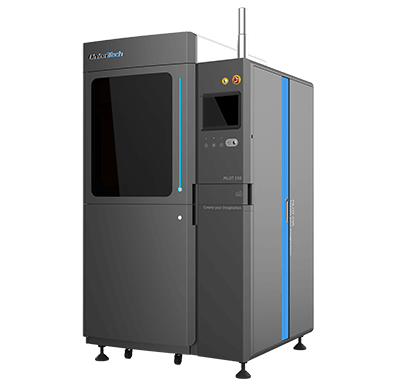

The Pilot250 supports open collaboration with its flexible design for materials and access, ensuring high-quality prints with less finishing needed. It's cost-effective over its lifetime and features automatic adjustments for top performance, making it simple and efficient for various uses.
One Printer, Multiple Industries

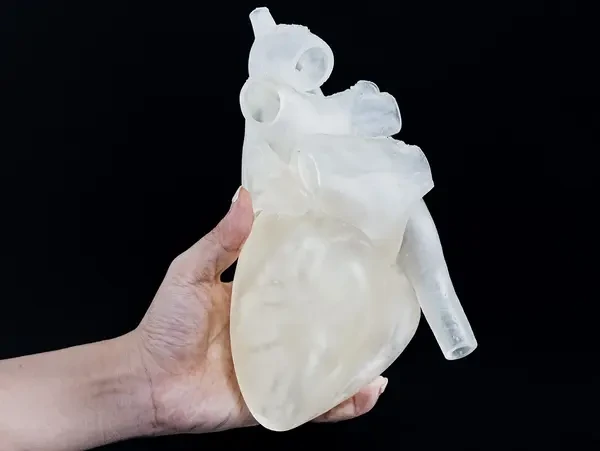

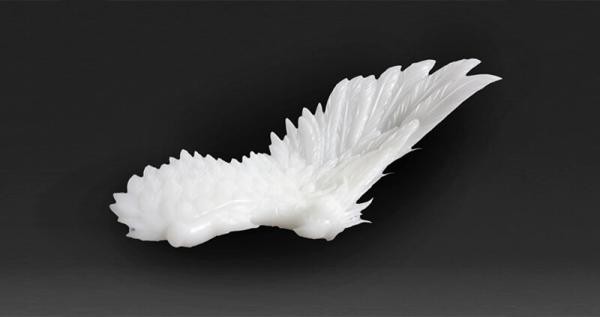

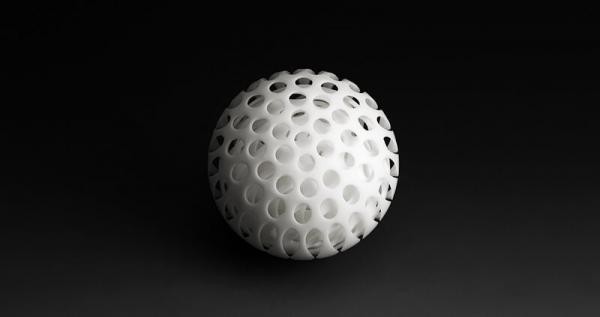

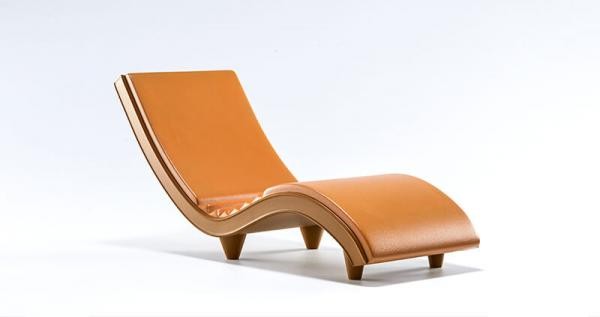

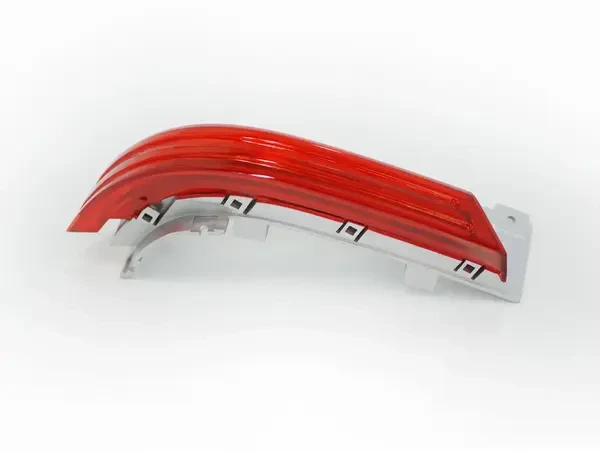

Fabricate beautiful, high-performance models, appliances, and prosthetics on a single printer with a wide range of rigorously tested 3D printing materials.
UnionTech Pilot250 Technical Specifications
| Build Volume | 250 × 250 × 250 mm9.8 × 9.8 × 9.8 in |
| Accuracy | Dimension <25.4 mm: ±0.025 mmDimension ≥25.4 mm: ±0.1% x Dimension |
| Layer Thickness | 0.05-0.25 mm |
| Laser | 355 nm, solid-state frequency tripledNd: YVO₄ |
| Beam Size | 0.06-0.08 mm |
| Scanning Speed | 6-10 m/s |
| Control Software | UnionTech™ RSCON |
| Date Interface | .stl |
| Network | Ethernet, IEEE802.3, TCP/IP |
| Electrical Requirements | 200-240 VAC, 50/60 Hz, Single Phase |
| Rated Power | 2.4 kVA |
| Systems Control | Closed-loop |
| Temperature Range | 22–26 °C (72–79 °F) |
| Relative Humidity | < 40% |
| Resin Vat | Replaceable |
| Machine Dimensions | 1090 × 1000 × 1850 mm42.91 x 39.37 x 72.84 in |
| Machine Weight | 726 kg |
