LOOP PRO X+
Industrial Grade Composite 3D Printers
Effortless support removal with game-changing surface quality
Functional Parts
DYNAMIDE ® industrial-grade composite filaments allow you to print durable end-use parts that can withstand very high temperatures where many other materials will yield around halfway. The 3D printed models are highly accurate, functional and look exceptional.
Plug & Play Maintenance
We offer hassle-free operation for all with a modular design that provides easier maintenance and reduces downtimes. Maintain the quality and mechanical properties of 3D printed models exceeding quality standards.
Affordable Price & Low Running Cost
Made with high-quality components, LOOP PRO X 3D Printer enables you to use high-end technology at a fraction of the cost with the highest price-performance ratio. No surprises, no hidden charges..
Large Build Volume
Build volume of 500 x 350 x 500 mm allows printing large models in one piece and low-volume multi-production.
Key Features
Dual Extruders
With our state-of-the-art modular printhead and dual extrusion system, it’s possible to achieve multi-material printing.
Breakaway Support
The DYNAMIDE® BREAKAWAY is a special kind of support material that allows users to easily remove support as needed. It is designed to break away quickly from the printed part, leaving a smooth finish.
Automatic Filament Changeover
LOOP PRO X+ is a smart solution suitable for both experienced professionals and beginners. It offers a simplified and automated workflow. The printer can detect when the filament runs out during printing and automatically switch to spare ones, avoiding incomplete prints and saving operators time. Say goodbye to disappointments and wasted time.
Automatic Sliding Doors
To ensure convenience and safety, automatic sliding doors with a user-friendly design have been incorporated into LOOP PRO X+. The doors are a unique addition that complements the machine's form and minimizes the risk of accidents.
Ambient Led Light
When the printing process starts, the LED lights turn on until the printing is finished. These lights let the user know that the printer is currently in use, making it easy to check the machine's status at a glance.
Large Build Volume
500 x 350 x 500 mm build volume allows printing large models in one piece and smaller models in multiple quantities.
CNC-Milled Unibody Aluminum Casting
CNC-milled unibody aluminum casting and specially engineered mechatronics ensure high rigidity, minimal vibration, outstanding dimensional accuracy, and unparalleled surface quality.
Flexible Build Plate
Get consistent results with magnetic spring steel sheet and PEI film to firmly embed the model on the surface and remove it fast when the job is done.
Plug & Play Maintenance
The purpose of modular electronic components is to minimize potential issues and avoid the need for on-site technical service. As a result, issues can be quickly resolved without causing long downtimes.
Printhead Cleaning Station
Thanks to the printhead cleaning station, the nozzle tip is cleaned every time a material switch occurs, ensuring that any residual artifacts are removed, and print quality is not affected.
| Feature | LOOP PRO X | LOOP PRO X+ |
|---|---|---|
| Build Volume | 500x350x500 mm (87,5 Litres) | 500x350x500 mm (87,5 Litres) |
| Available Materials | DYNAMIDE® CF, DYNAMIDE® GF, DYNAMIDE® ASA, DYNAMIDE® PA | DYNAMIDE® CF, DYNAMIDE® GF, DYNAMIDE® ASA, DYNAMIDE® PA, DYNAMIDE® SS, DYNAMIDE® BREAKAWAY |
| 3rd Party Materials | Open Material System | Open Material System |
| Chassis Material | CNC-Milled Unibody Aluminum Casting | CNC-Milled Unibody Aluminum Casting |
| Modular Electronics | LOOP 3D Core, LOOP 3D Connect | LOOP 3D Core+, LOOP 3D Connect |
| Number of Extruders | 1 | 2 |
| Number of Printheads | 1 | 1 |
| Material Loading | Software assisted / Manual | Hardware assisted / Automatic |
| Material Run-Out Detection | Software tracking only | Yes |
| Automatic material changeover after run-out | - | Yes |
| Soluble or Breakaway Support / Multi-Material Printing | - | Yes |
| Automatic Cover Locks | - | Yes |
| Online Software | LOOP 3D CLOUD 2.0 | LOOP 3D CLOUD 2.0 |
Modular Electronics
Quickly Replaceable & Easy to Maintain
Modular electronic components are designed to minimize the damage of potential issues without creating the need for on-site technical service

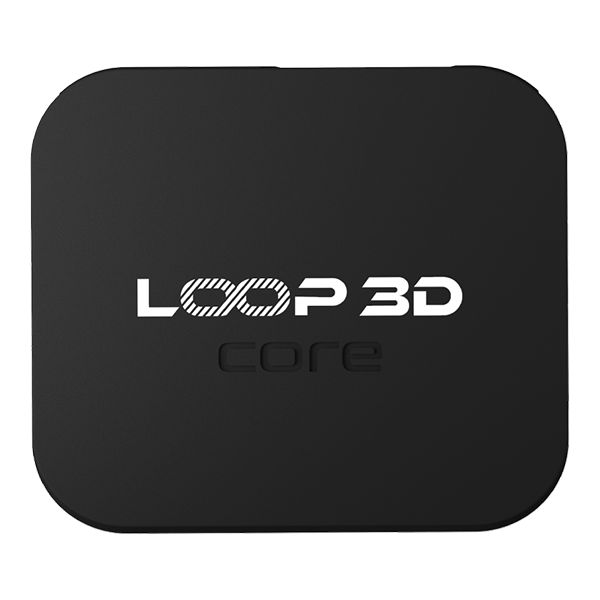

LOOP 3D Core+
LOOP 3D Core+ holds the controller board and the motor drivers of LOOP PRO X+ 3D printer inside. From heating to cooling, positioning to filament extrusion, every motion is controlled by this box.

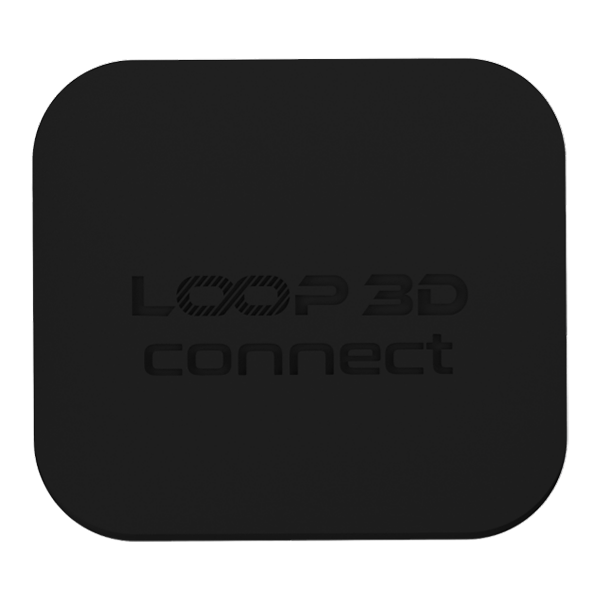

LOOP 3D Connect
LOOP 3D connect is the brain of LOOP PRO X series 3D printers and holds a micro-computer inside. This box provides the cloud connection, UI and the touch screen controls.

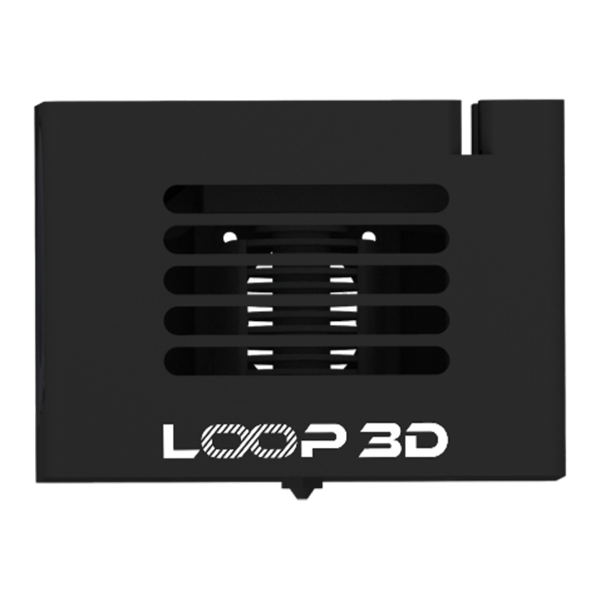

LOOP 3D Printhead
It is designed to be durable and swappable for long term use and easy maintenance while giving you the prints with the best surface quality. Thanks to the hardened steel noozle, printhead is able to print the hardest materials with ease.

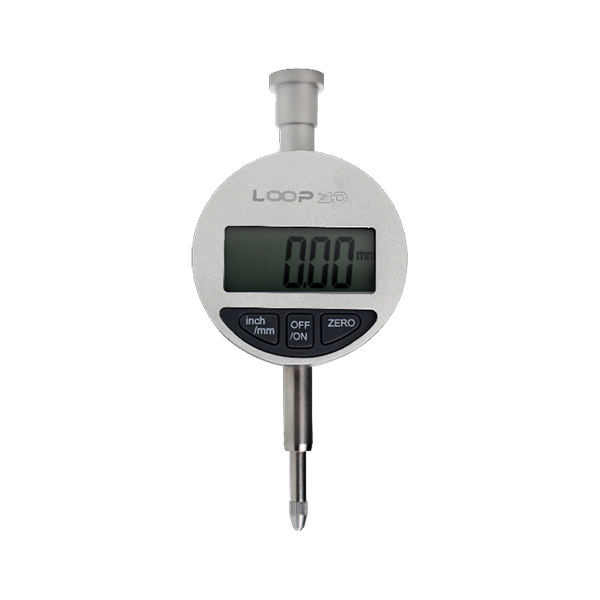

LOOP 3D Calibration Check Tool
It enables checking build plate calibration with high precision and minimal effort. Swap it with the modular printhead, and you are ready to test and set build plate calibration with a slight adjustment to the calibration screws.

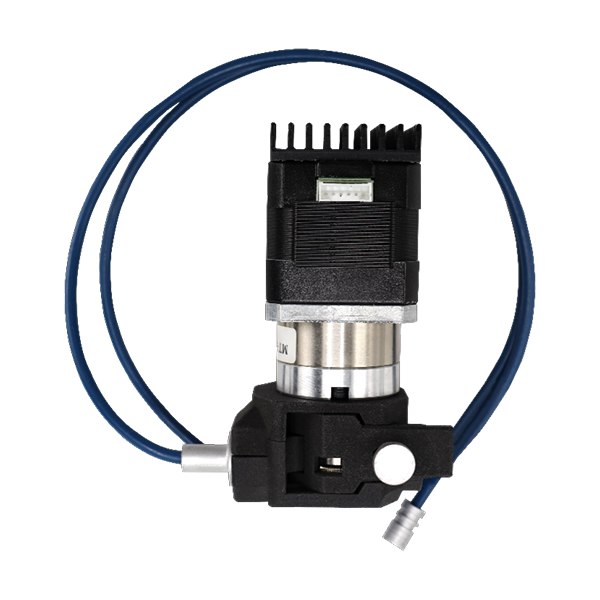

LOOP 3D Extruder
LOOP 3D extruder is the part that is responsible for pushing the filament to the printhead with high precision and a superior strength. The extruder module comes with attached high-end filament tube for low friction, precision and high quality prints.

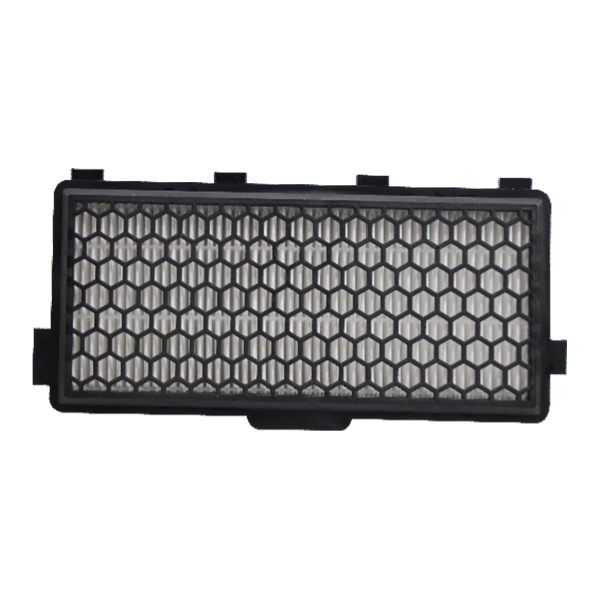

LOOP 3D HEPA & Carbon Filter
Built-in carbon filter gets rid of unpleasant odours released during the 3D printing process. Thanks to the filter, LOOP PRO X Series 3D Printers can be used in offices and working environments.
