The world’s first wireless and AI-driven 3D scanner
Artec Leo is the only wireless and fully standalone professional 3D scanner designed to make scanning as easy and effortless as possible. With the new NVIDIA Jetson TX2 processor onboard, 5” HD built-in display and battery, it’s the ultimate all-in-one 3D scanning solution for fast, accurate, and high-quality data capture.
The all-new Leo runs at more than twice the power than it did before, and guarantees accuracy at every step of the way – you're set up for success from the start.
- Preview 3D model on screen in real time
- AI-driven for smart data capture
- HD Mode for higher resolution
- Accuracy up to: 0.1 mm
- Resolution up to: 0.2 mm
- Object size: M, L
Typical objects for Leo:
- Gearboxes, castings

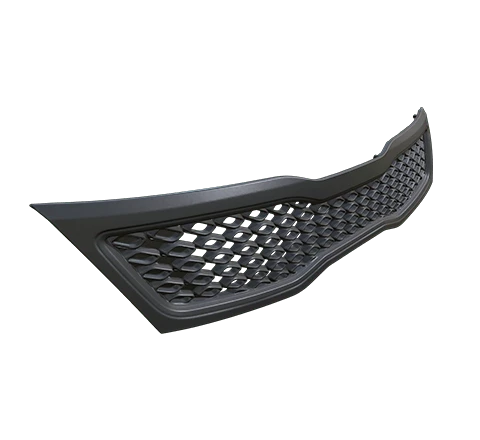

- Automotive parts
- Reverse engineering
- Healthcare
- Science and education
- Industrial design and manufacturing
- Art and Design
- Turbines, ship propellers, small boats

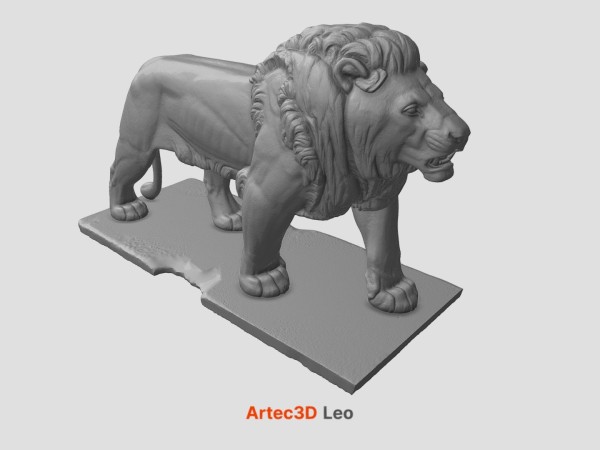

- Statues, and the human body
- Furniture and room interiors
- Crime scenes
Widest range
From a specific car part you need to customize or an entire machine at your factory, an armchair to the room it sits in, a human body to a crime scene, Leo can scan the widest range of objects in the industry. Find out more about why Leo is the scanner you’re looking for.
Easy to use

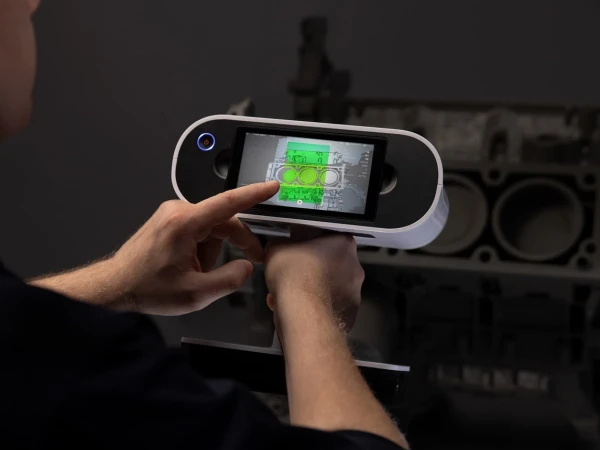

Interactive real-time scanning hints, hybrid target-free tracking system, smart scanning modes for faster data processing – just a few things that make our Leo the easiest 3D scanner to use. Just pick it up, point at whatever you want to scan, and hit that start button. Leo will take care of the rest.
Fully mobile

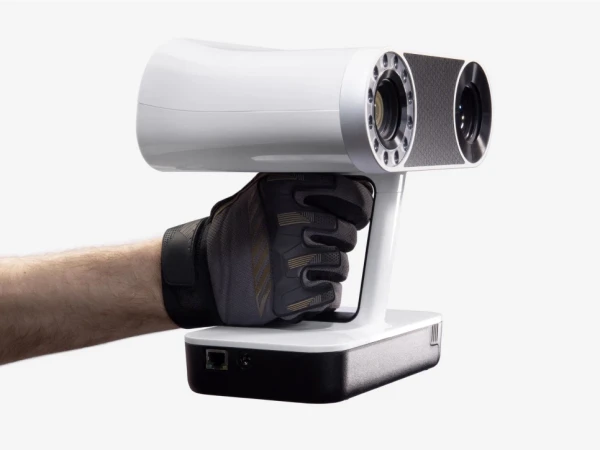

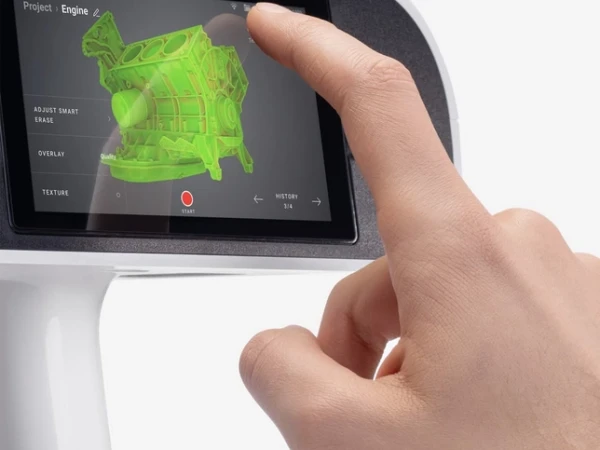

Scan anywhere. No computer. No cables. An all-new, cloud-connected, WiFi-enabled, and completely cable-free design lets you take Artec Leo’s immense scanning capabilities wherever you need them without ever needing a computer. Take full control with a tilting, interactive screen that displays a real-time replica with color-coded cues to help you capture perfect scans, every time.
Proven quality & accuracy
The 2022 Artec Leo remains at a stable and optimal temperature throughout the scanning process to bring your accuracy to the next level, while a calibration certificate and Leo Calibration Kit guarantee top quality is maintained every step of the way.
Speed & power
Powered by the most power-efficient embedded NVIDIA Jetson TX2 processor and state-of-the-art algorithms, Leo is like no other scanner when it comes to performance, accuracy, and durability.

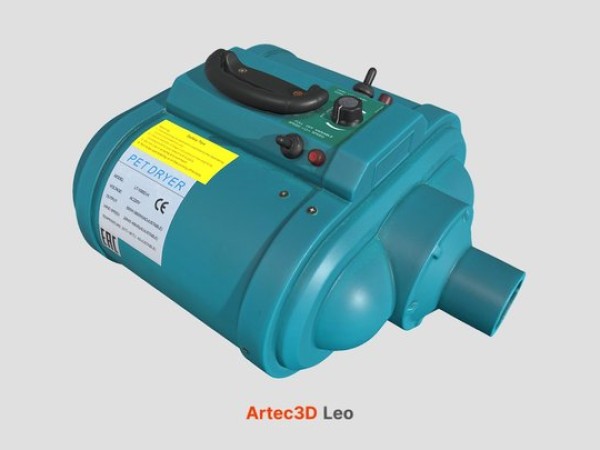

Color capture capabilities

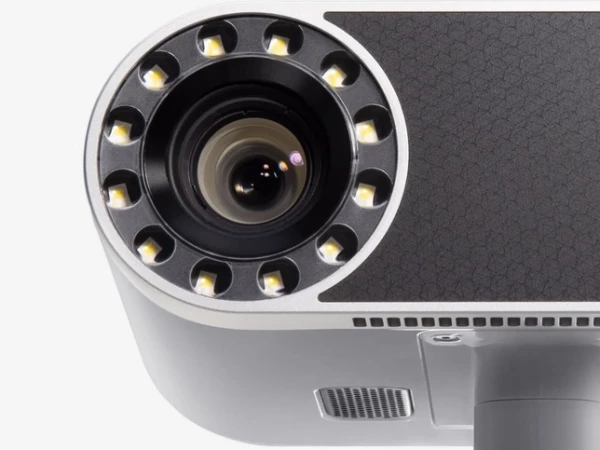

We’ve packed Leo with advanced tech to capture rich texture, adjust to lighting conditions, and perform precise texture-to-geometry mapping. Leo has a two-in-one optical system, an integrated supercomputer on a module, position sensors with 9 DoF, and VCSEL light technology that varies flash intensity.
Versatile solutions
With a 160,000 cm-cubed capture zone, Leo is truly versatile when it comes to size. It excels at capturing both medium-sized (20-50 cm) and large (50-200 cm) objects and surfaces. However, if paired with a powerful computer, it can take on even very large objects (200+ cm) or even entire spaces, such as rooms or crime scenes.
Artec LEO 3D Scanner Technical Specifications
| Display | Built-in touch panel screen |
| Processing | On-board real-time processing |
| Volume capture zone | 160,000 cm³ |
| 3D reconstruction rate, up to | 80 FPS |
| 3D resolution, up to | 0.2 mm |
| 3D point accuracy, up to | 0.1 mm |
| Color resolution | 2.3 mp |
| Structured-light source | VCSEL |
| Position sensors | Built-in 9 DoF inertial system |
| Multi-core processing | NVIDIA Jetson TX2 |
| Power source | In-built exchangeable battery |
| Connectivity | Wireless |
Smart data capture, no targets needed.
Just pick it up, point at whatever you want to scan, and hit that start button. Leo will take care of the rest.
Leo’s state-of-the-art hybrid geometry and texture tracking frees you up from using any additional equipment like targets or markers for stable scanning. You can just point it at the object and start scanning. It’s that easy.

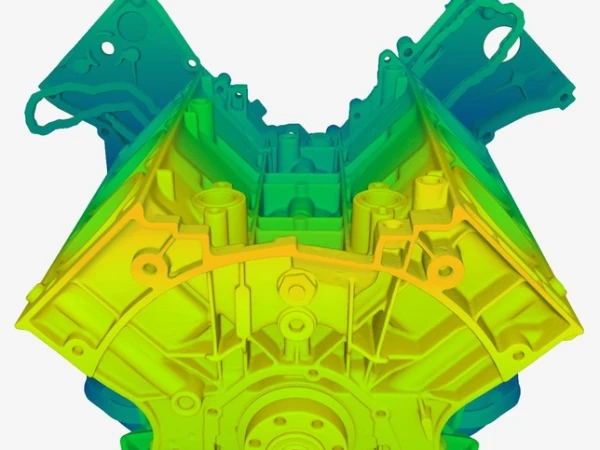

Distance color map to aid scanning.
To help you keep the optimal distance to the object during scanning and thus capture more data in less time, Leo has visual aids in place. The surface you're scanning will be displayed in red on Leo's screen if you're holding the scanner too close to it, or blue if the distance is too great. And if it’s green? All systems go – you're doing everything right.

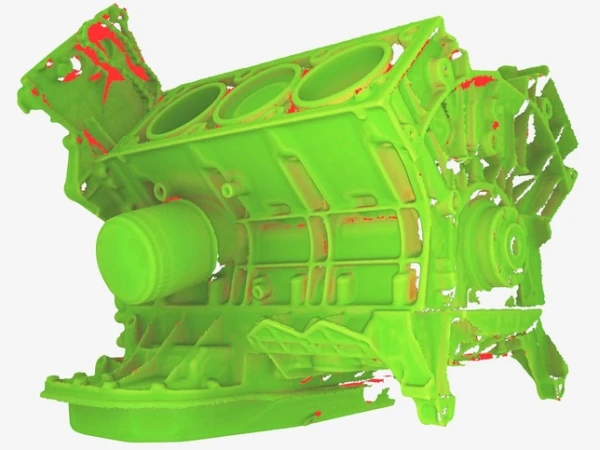

Never miss a spot.
Smart surface quality indicator on the display lets you see which areas have been captured completely, and which require additional attention, f.ex. more frames or more coverage from different angles. It also gives you hints if you are scanning too fast or holding the scanner too far.
Seamlessly pause and resume scanning whenever you need.
When you’re ready to continue, Leo will pick up from where you left off, and add the new data to the existing project.

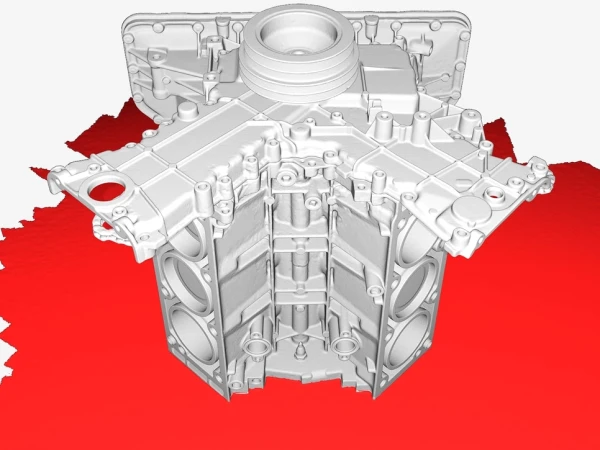

Smart scanning, less processing.
Powered by proprietary AI technology, Leo captures only the data you need – more intelligence for less processing time and cleanup work.

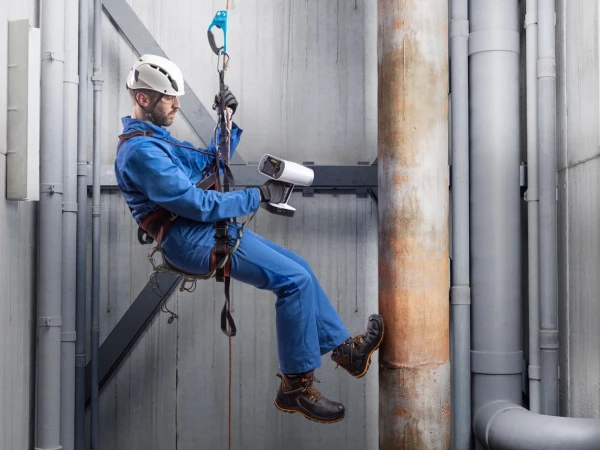

Scan anywhere. No computer. No cables.
An all-new, cloud-connected, WiFi-enabled, and completely cable-free design lets you take Artec Leo’s immense scanning capabilities wherever you need them without ever needing a computer. Take full control with a tilting, interactive screen that displays a real-time replica with color-coded cues to help you capture perfect scans, every time.
